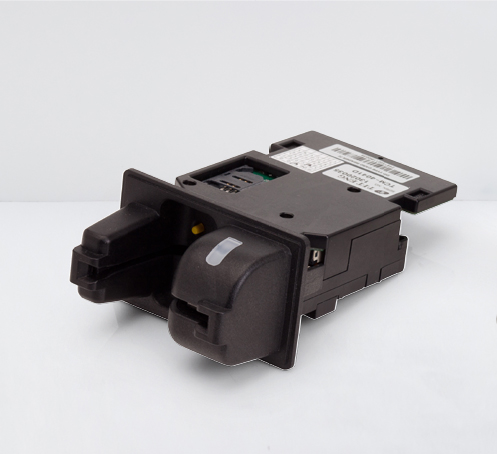

Pointman CardReader TDR-R210F

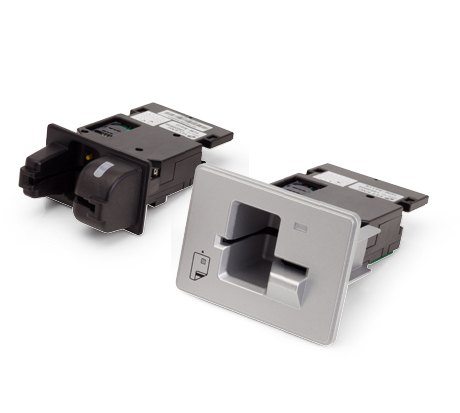

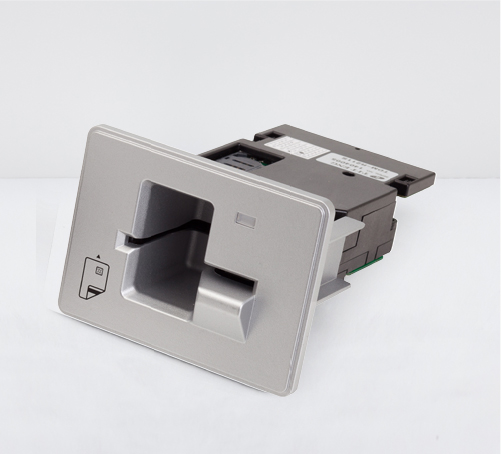

Affordable manual card reader & writer Mag.Stripe & IC Contact smart card R/W High security : Shutter, Locking function Meet environmental needs - Various bezel option

• ISO7811(Track 1,2,3), JIS II
• Coercivity : HiCo / LoCo

• ISO 7816
• T=0, T=1 protocol
• EMV Level 1, EMV Level 2(Payment Offline)

• ISO 14443 A/B, Mifare, Desfire, NFC, Felica (PC/SC or Serial)

• 100~1000mm/s capability (at flat card)

• RS232C or USB

• +12Vdc +-10%, 2A

• Mag. Head : 500,000 passes
• Smart card contact : 1,000,000 contacts

• Operating Temperature : 0 ~ 50℃, Operating Humidity : 5 ~ 90 RH
• Storage Temperature : -20 ~ 70℃, Storage Humidity : 5 ~ 90 RH

• 82.5mm (W) × 50mm (H) × 1 39.4mm (L) (153.4 mm (L) : including RS232C connector)

• Less than 200g
