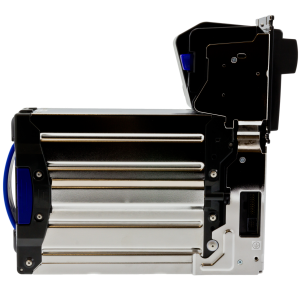

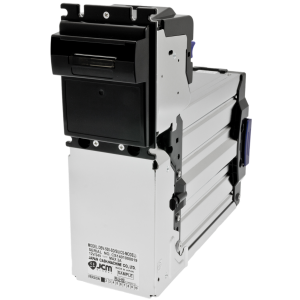

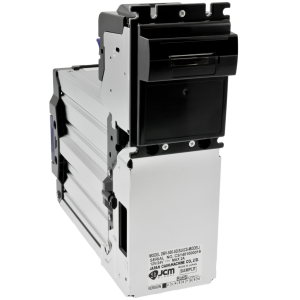

JCM DBV-1500-R banknote receiver with 500 banknotes cassette

DBV®-500 Bill Validator

JCM Global’s all new DBV-500 series has been meticulously developed based on our 25 years of experience in bill validation technology. The robust design, increased processing speed, and state-of-the-art sensor technology combine to make the DBV-500 the best choice for a wide range of automated payment applications. In addition, the universal design supports most major currencies without any hardware modification.

• 98% or greater

• Width: 60-78mm (2.36-3.07 in.)
• Length: 120-160mm (4.72-6.29 in.)
  133-177mm (5.23-6.97 in.) Option

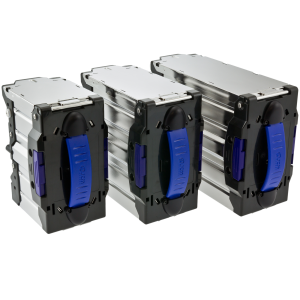

• S: 500 notes
• M: 1000 notes
• L: Approx. 1400 notes
• Lock and sealing option

• Rear Access

12 to 24VDC

• 12V, Max 3.0A
  Standby = 200mA
  Operation = 2.3A
  Peak = 3.0A 12V,


• Max 2.0A (Current Limiting Mode)
  Standby = 200mA
  Operation = 1.4A
  Peak = 2.0A


• 24V, Max 1.4A
  Standby = 120mA
  Operation = 1.2A
  Peak = 1.4A

• Operation: -15°C to +60°C (5°F to 140°F)
• Storage Temperature: -20°C to +60°C (-4°F to 140°F)

• Down or Up Stack

• RS232C, TTL, Photo-coupler, USB (2.0 full speed)

• ID-003 Serial, ID-008 USB, CCNET, MDB

• DBV-500-S: Global Market
• DBV-500-R: Russian Market (certified by CBR)

• 2.1kg (with S box), 2.3kg (M), 2.4kg (L)
