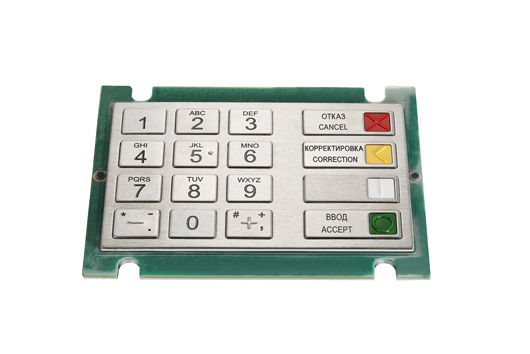

SZZT ZT596F-NFG-H14-ZZZ

The SZZT EPP ZT596F is the top-of-line encrypting PIN pad, offering manufacturers and integrators one of the most secure 3DES-compliant input devices available on the market. Optimized for usage in self-service kiosk, ATM, and self-payment gas pump. The ruggedized design of the EPP 596F are built to withstand the most severe fraudulent attacks while complying with payment security standards on the back end.
ZT596F features with Braille equipped, supports Remote Key Loading from SZZT, giving customers an open-standard, flexible on-line key loading solution that is more secure and cost-effective than traditional dual-control split knowledge key installation and maintenance.

Stainless steel keys in a polymer keyboard frame
Ability to customize layout
Raised keys with optional embossing
3DES and RSA (2048)
Watertight when properly installed (IP65 front of keyboard)
Connectors for function keys
USB 2.0 AND RS-232 interfaces
512 KB Program
512 KB Data (key) storage
-25℃+60℃ temperature range
Vandal resistance: IK08
Three million-cycle keyboard lifetime

• 176*132.4*30mm

• 160*102.4mm

• 900g

• PCI 3.x approval

• NO. 4-10091
