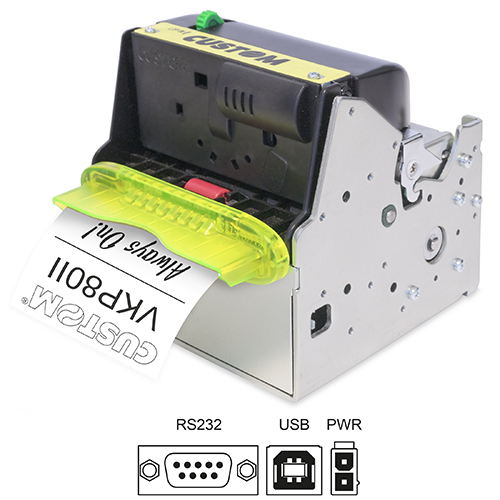

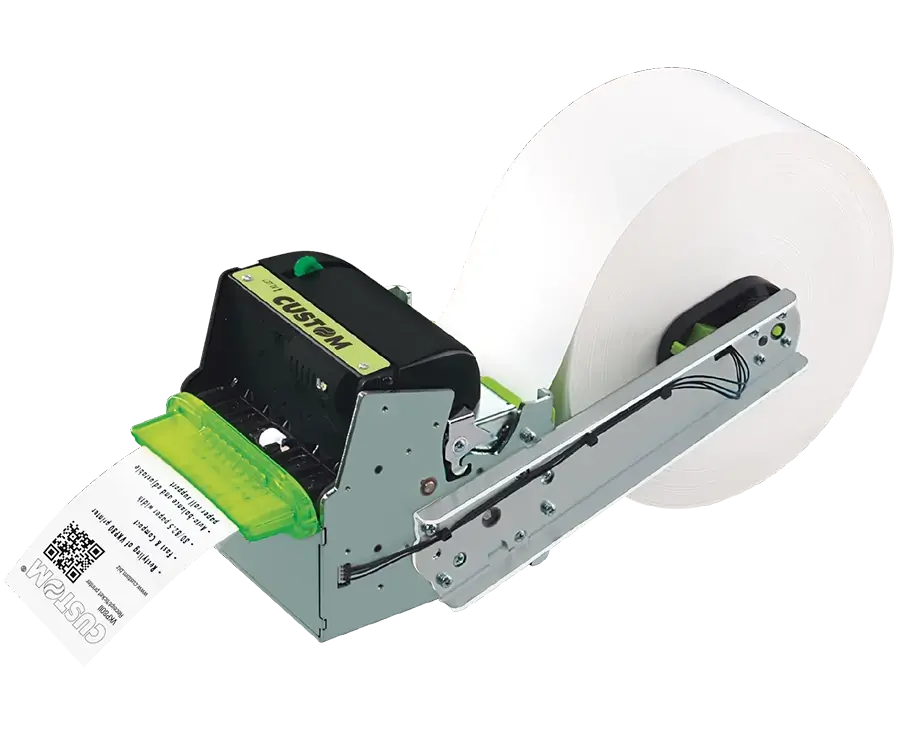

Custom VKP80II SX

Custom VKP80II SX
80mm ticket / receipt printer

Anti Jamming System. Automatic Status Back. Adjustable paper infeed for different paper widths. Self-balancing paper roll holder. Illuminated paper bezel. Multi-position paper roll. The standard roll holder handles paper rolls with a diameter of up to 180mm. Automatic ticket Presenter. Automatic ticket retracting. Operating temperatures -20÷ +70°C.

• Thermal with fixed head

• 8 dots/mm

• 203 DPI  / head featuring improved printing quality

• 220 mm/sec

• PC437, PC850, PC860, PC863, PC865, PC858

• Normal, height and width from 1x to 8x, reverse, underlined, script, bold

• Straight, 90°, 180°, 270°

• from 60 to 82.5 mm

• from 55 to 110 g/m²

• max 180mm (150mm with paper roll on top)

• CUSTOM/POS

• RS232+USB

• 16 KB

• 384 KB

• 2 logos of 608 x 862 dots (for 80/82.5mm paper width)

• Windows® (32/64 bit) – only on request WHQL and silent installation;
• Linux (32/64 bit);
• Virtual COM (Linux or Windows 32/64 bit);
• OPOS;
• JavaPOS;
• WOSA XFS
• Android™;
• iOS

• PrinterSet, CustomPowerTool, Status Monitor, Custom Windows API

• 24 Vdc±10%

• 1A   (12,5% dots turned on)

• 590,000 hours (electronic board)

• 100Km / 100M pulses

• 1,500.000 cuts

• -20 ÷ +70°C

• 149.5 (L) x 121.2 (H) x 123.5 (W) mm

• 1.6 Kg
