Main Features

• Intel Core i5 5200U Broadwell SOC Processor
• Intel HD 5500
• 1 x VGA, 2 x HDMI, 6 x RS-232, 1 x RS-485
• 4 x USB 3.0, 2 x USB 2.0, 1 x SATA 3
• 1 x Mini-PCIe, 1 x mSATA
• 2 X Intel I211-AT Gigabit LAN

Processor System
CPU

Intel Core i5 Broadwell SOC Processor
Default 5200U Dual Core Processor
2.2GHz Up To 2.7GHz, 3M Cache

CPU TDP

• 15W

Memory

• 1 x DDR3L SO-DIMM Socket (Up to 8G, 1333/1600MHz)

Chipset

• By CPU

Graphics

• Intel® HD 5500

LAN Chipset

• 2 x Intel I211-AT Gigabit LAN

Audio

• Realtek ALC662 HD Audio

Watch Dog

• Yes

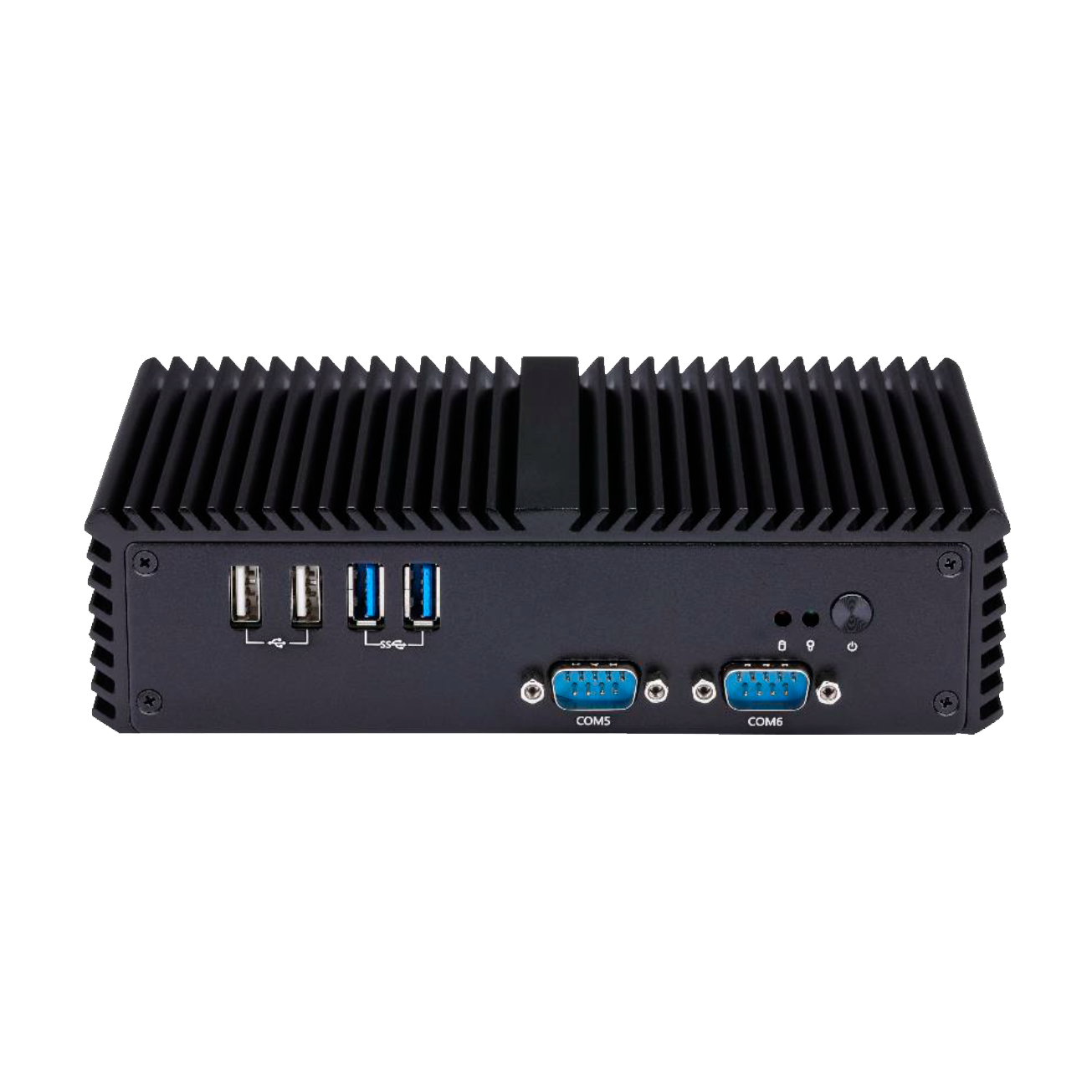

Front I/O
Power Button

• 1

LED

• 1 x Power LED, 1 x HDD LED

USB

• 2 x USB 3.0, 2 x USB 2

Serial Port

• 2 x RS-232 (COM5, COM6)

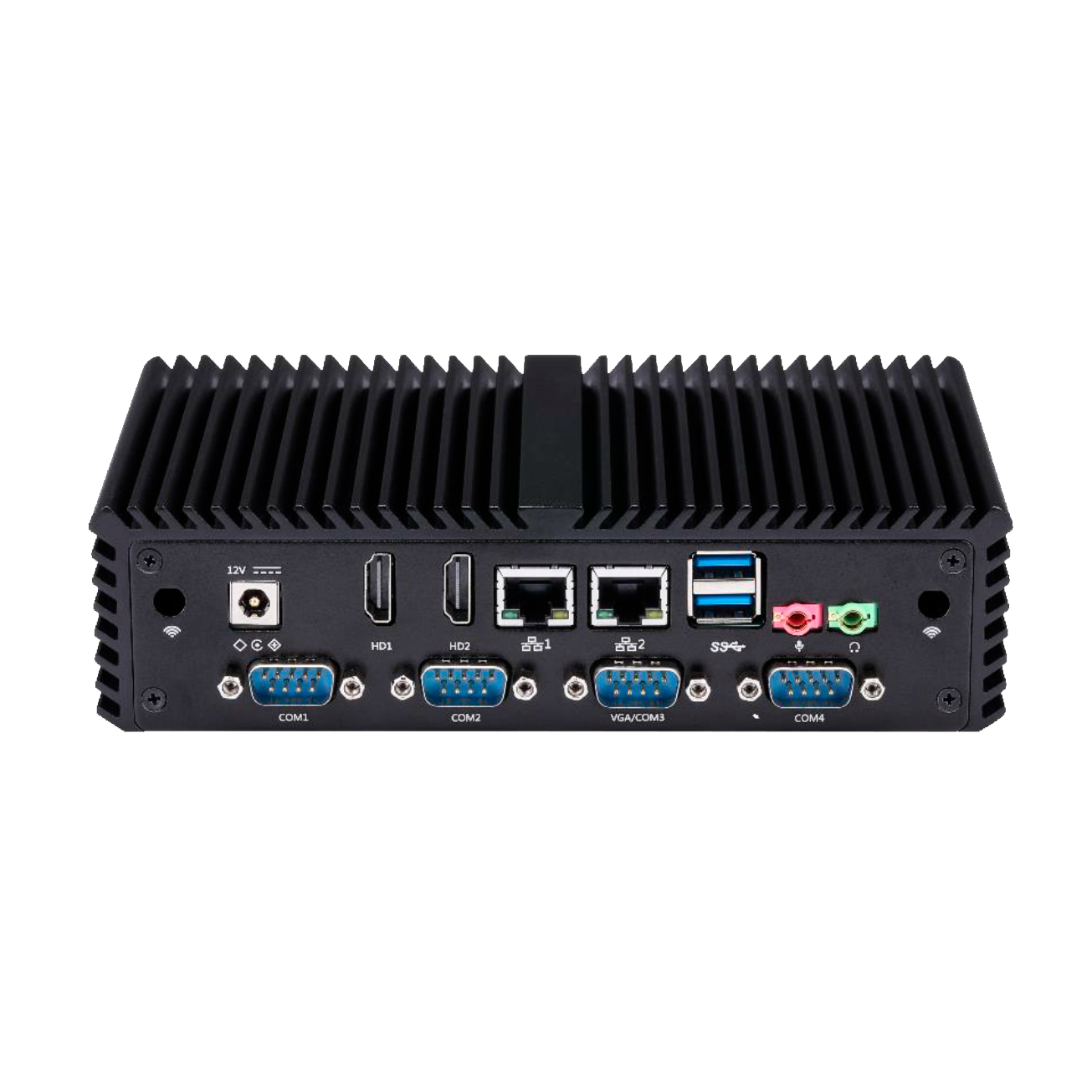

Rear I/O
Power

• 1 x DC Jack

Video Output

• 2 x HDMI, 1 x VGA (Optional)

LAN

• 2 x RJ45 Port for Gigabit LAN

USB

• 2 x USB 3

Audio

• 1 (Mic-in, Line-out)

Serial Port

• 4 x RS-232 (COM1, COM2, COM3, COM4)

Storage
Type

• 1 x 2.5-inch HDD/SSD
• 1 x Mini-PCIe for mSATA SSD

OS Support
OS

• Windows 7, Windows 8, Windows 10, Linux

Expansion
mSATA

• 1 x Full Size Mini-PCIe for SSD

Mini-PCIe

• 1 x Mini-PCIe for Option,
• 1, Full-length for 3G, Half-length for Wi-Fi
• Module by Default

SIM Card Slot

• 1

Automatically Boot Jumper

• 1

VGA

• 1 x 2 Pitch Header

GPIO

• 1 x 2 Pitch Header

RS-485

• COM2 can be set up as RS-232/RS-485 (Factory Setting)

VGA

• COM3 can be set up as VGA (Factory Setting)

DC-in

• Header

Power Requirement
Power Adapter

• 12V5A

DC Jack

• 5.5mm, 2.5mm

Environmental
Operating Temp

• 0°C~50°C

Non-Operating Temp

• -20°C~80°C

Humidity

• 10%~90%

Mechanical
Material

• Aluminum

Dimension

• 187 x 111 x 50mm

Weight

• 1.1kg

Mounting

• VESA Mounting Bracket

Packaging Dimension

• 261 x 218 x 75mm

Kensington Lock

• Support

Cooling Mode

• Fanless Design
