Mini PC-Features-X1900 J1900 CPU

Mini PC-Features-X1900 J1900 CPU
Main Features

• Intel Celeron J1900 Bay Trail SOC Processor
• Intel HD Graphics
• 1 x VGA, 1 x HDMI, 7 x RS-232,
• 1 x USB 3.0, 1 x USB 2.0, 1 x SATA 3
• 1 x Mini-PCIe, 1 x mSATA
• 2 x Realtek Gigabit LAN

Processor System
CPU

Intel Celeron BayTrail SOC Processor
Default J1900 Quad Core Processor 2.0GHz
Up To 2.42GHz 2M Cache

CPU TDP

• 10W

Memory

• 1 x DDR3L SO-DIMM Socket (up to 8G,1333/1600MHz)

Chipset

• By CPU

Graphics

• Intel® HD Graphics

LAN Chipset

• 2 x Realtek Gigabit LAN

Audio

• Realtek ALC662 HD Audio

Watch Dog

• Yes

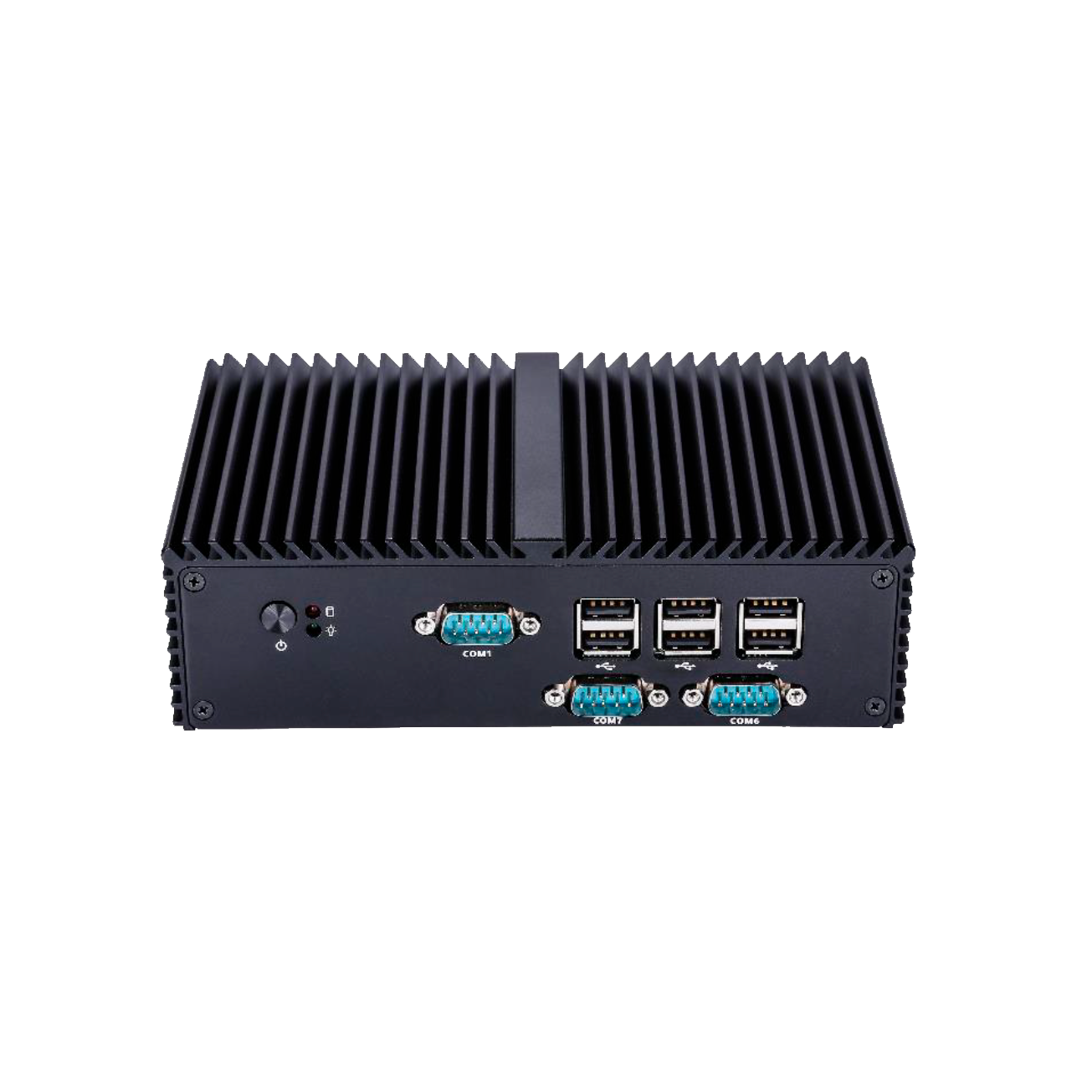

Front I/O
Power Button

• 1

LED

• 1 x Power LED

LED

• 1 x HDD LED

Serial Port

• 3 x RS-232 ((COM1 Supports 5V/12V))

USB

• 6 x USB 2

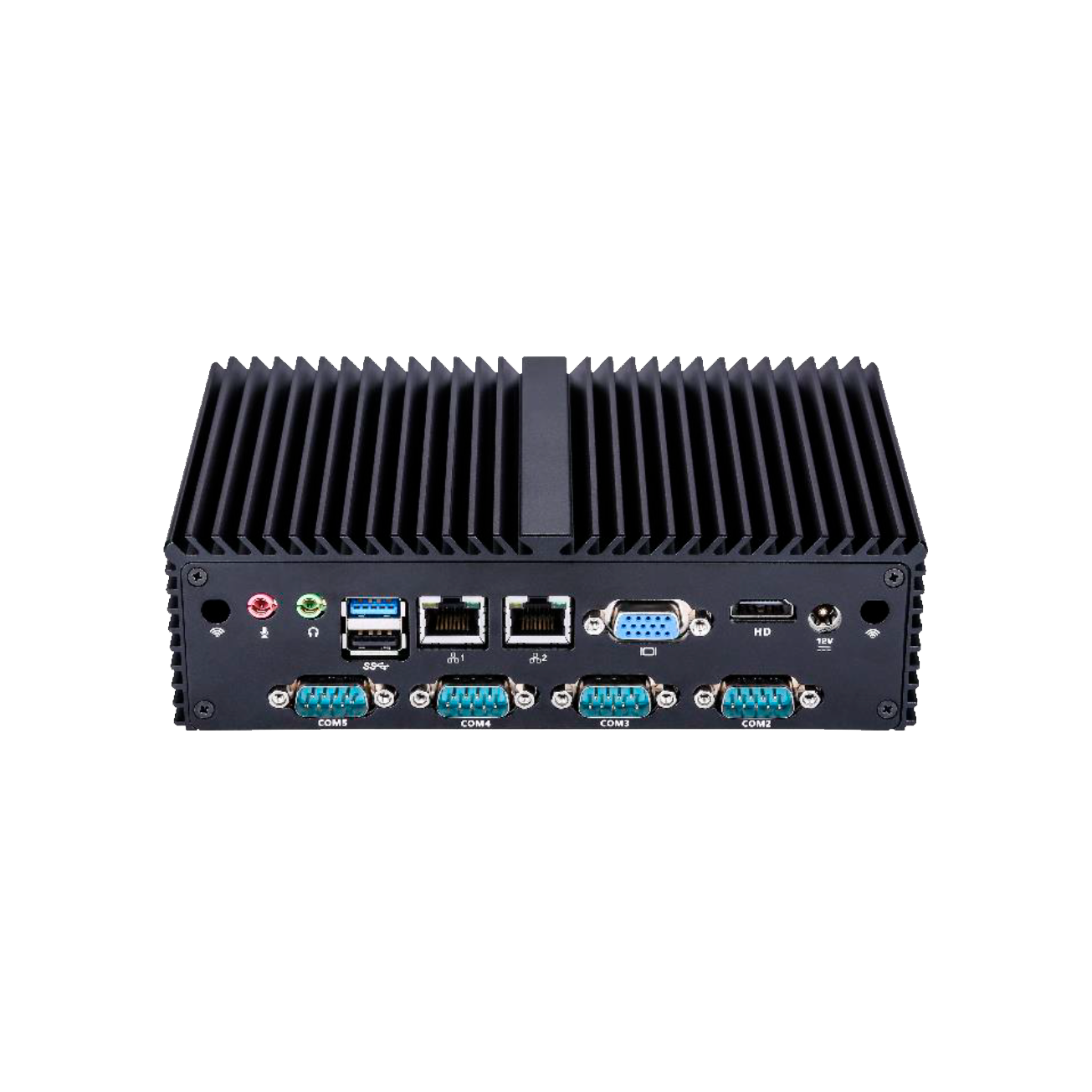

Rear I/O
Power

• 1 x DC Jack

Video Output

• 1 x HDMI, 1 x VGA

LAN

• 2 x RJ-45 Port for Gigabit LAN

USB

• 1 x USB 3.0, 1 x USB 2

Audio

• 2 (Line-out, Mic-in)

Serial Port

• 4 x RS-232 (COM2/COM3 Supports 5V/12V)

Storage
Type

• 1 x 2.5-inch HDD/SSD
• 1 x Mini-PCIe for mSATA SSD

Expansion
mSATA

• 1 x Full Length Mini-PCIe for SSD

Mini-PCIe

• 1 x Mini-PCIe for Wi-Fi (3G/4G) Module

SIM Card Slot

• Yes

Automatically Boot Jumper

• 1

VGA

• 1

GPIO

• 1

RS-485

• 0

DC-in

• 1

Power Requirement
Power Adapter

• 12V3A

DC Jack

• 5.5mm, 2.5mm

Environmental
Operating Temp

• 0°C~50°C

Non-Operating Temp

• -20°C~80°C

Humidity

• 10%~90%

Mechanical
Material

• Aluminum

Dimension

• 178 x 111 x 53mm

Weight

• 0.87kg

Mounting

• VESA Mounting Bracket

Packaging Dimension

• 261 x 218 x 75mm

Kensington Lock

• Support

Cooling Mode

• Fanless Design

OS Support
OS

• Windows 7, Windows 8, Windows 10, Linux
