DESKO PENTACube Document Scanner

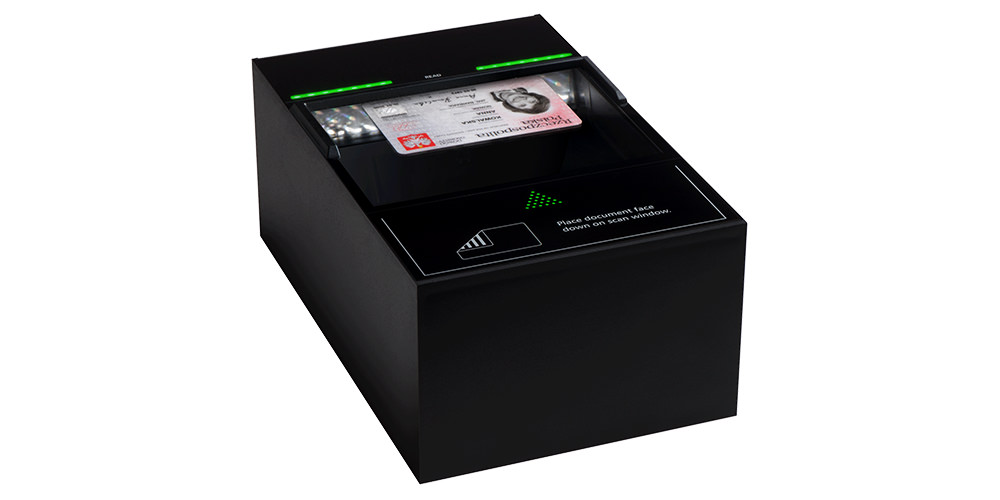

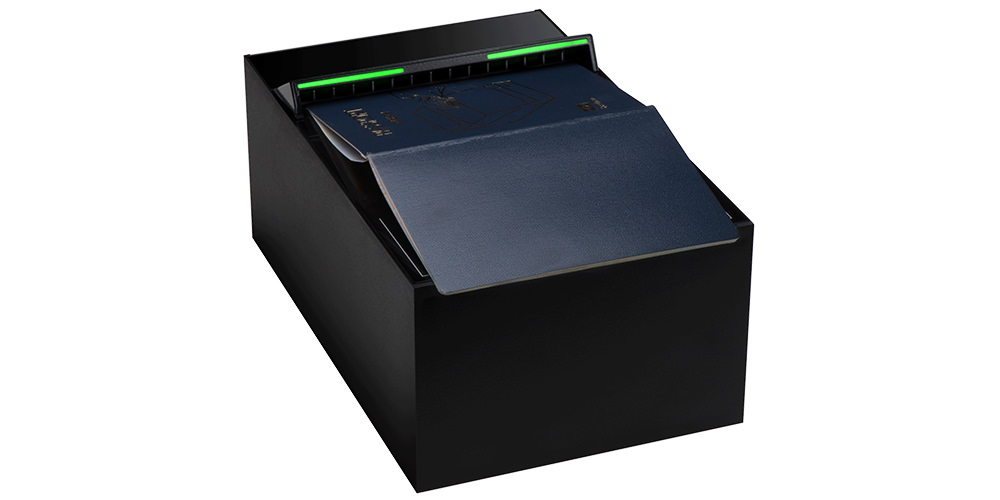

DESKO PENTA Scanner® Cube
Powerful full-page scanner for installation

Are you looking for a built-in device that offers all the advantages of DESKO PENTA technology yet boasts easy options for integration into self-service solutions? With the DESKO PENTA Scanner® Cube, we have developed an innovative OEM device for flexible installation in e-gates kiosks and counters. Equipped with the latest technology, the scanner achieves extremely rapid and reliable reading results for capturing passports, IDs, driver’s licenses and other identity documents. As a result, the PENTAScanner Cube is ideal for visitor controls, airport or hotel check-in and border or access controls.

• 5V DC +/- 5% Icc: max. 2.5 A

• L 226.75 mm (8.93 inches) × W 143 mm (5.63 inches) × H 108,1 mm (4.26 inches)

• L 94,2 mm (3.71 inches) × W 131 mm (5.16 inches)

• IR, visible light and UV-A (optional)

• JPG, BMP, PNG

• 150 up to 500 dpi

• USB USB-C (optional)

• Audible and visible status indicator

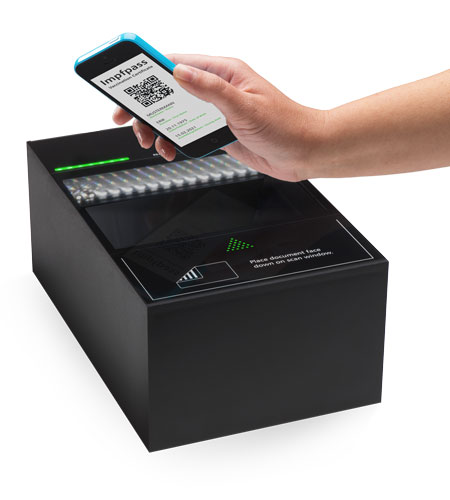

• Integrated barcode engine for 1D and 2D barcode reading, from smartwatches, smartphones and even large tablets
• RFID ePassport reading (ISO 14443 type A & B including anti-collision, auto-detection)
• China ID Reading Module: integrated RFID module specifically designed for reading China National ID Card
• Future-proof with full NFC support
• Automatic high reliable OCR/MRZ recognition (ICAO 9303)
• High speed automatic image scan of all ID and passport documents
• Visible and infrared illumination scalable up to 500 dpi
• LED powered UV illumination (365 nm)
• Security glass with Corning® Gorilla® Glass 3
• IP54 certified, device protected against dust and water damage according to IP54 regulations
