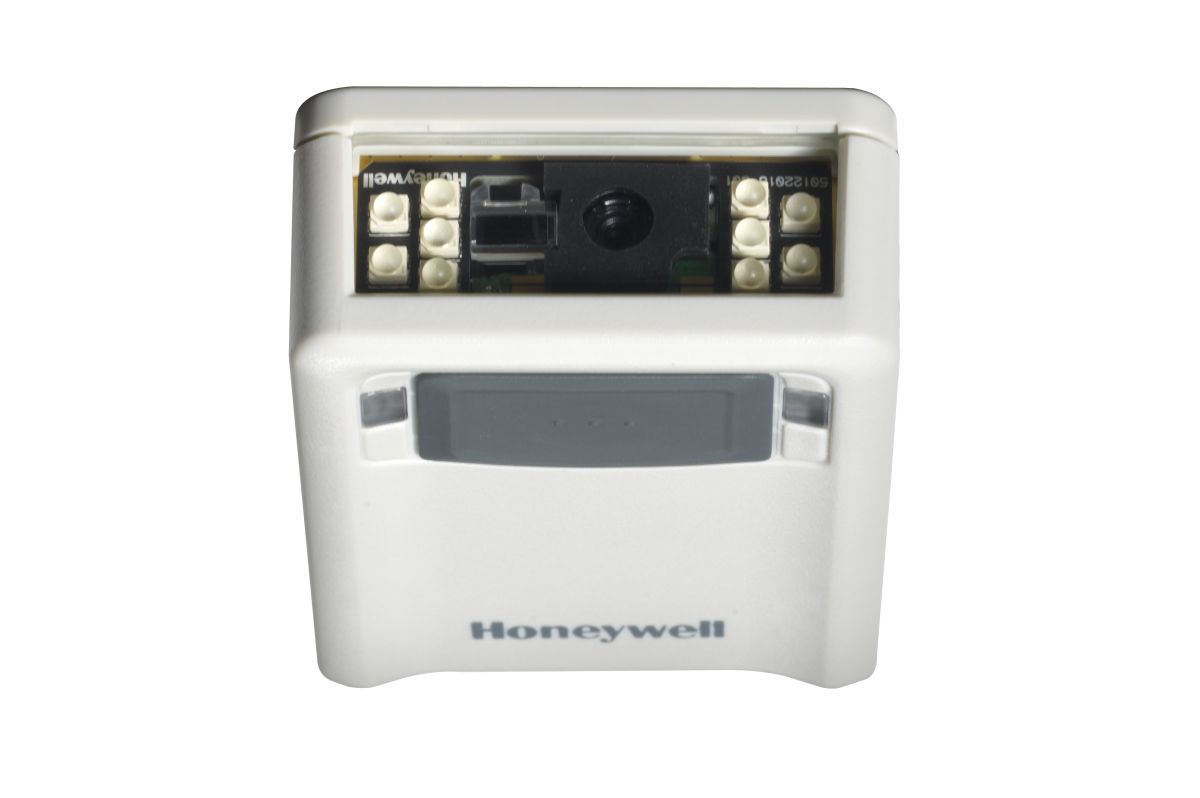

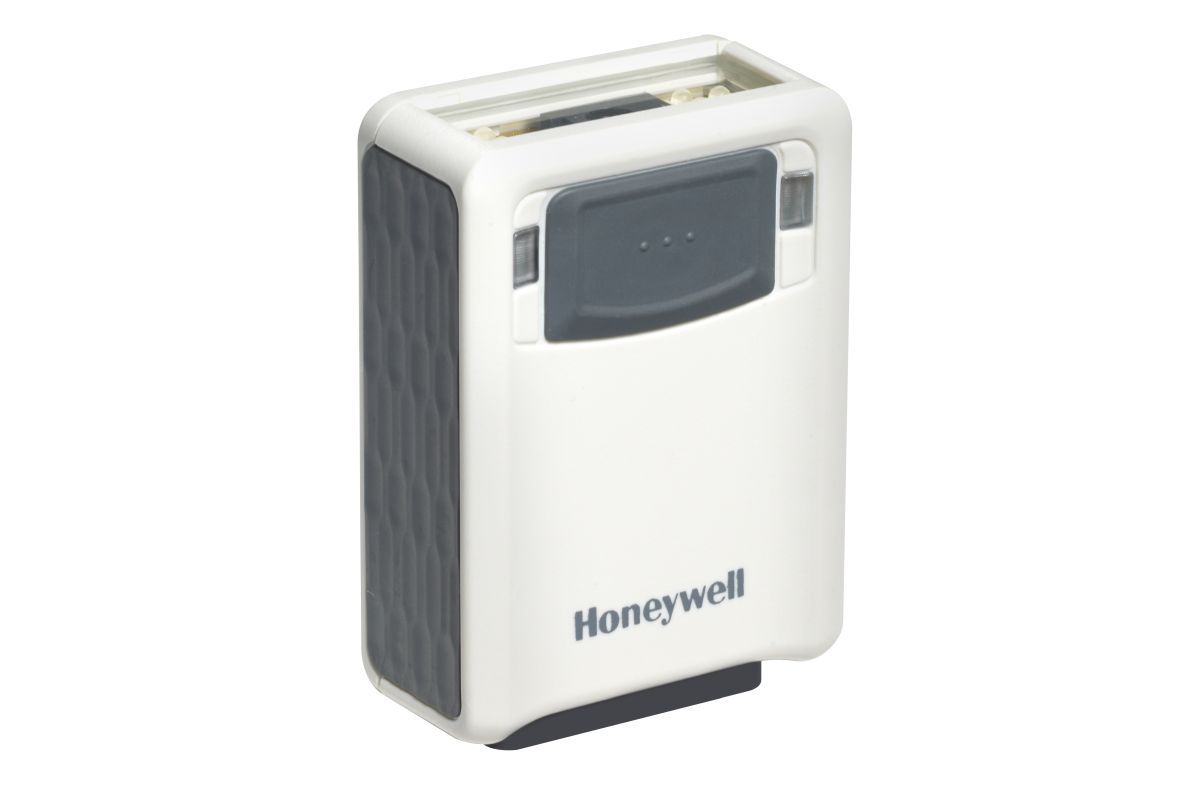

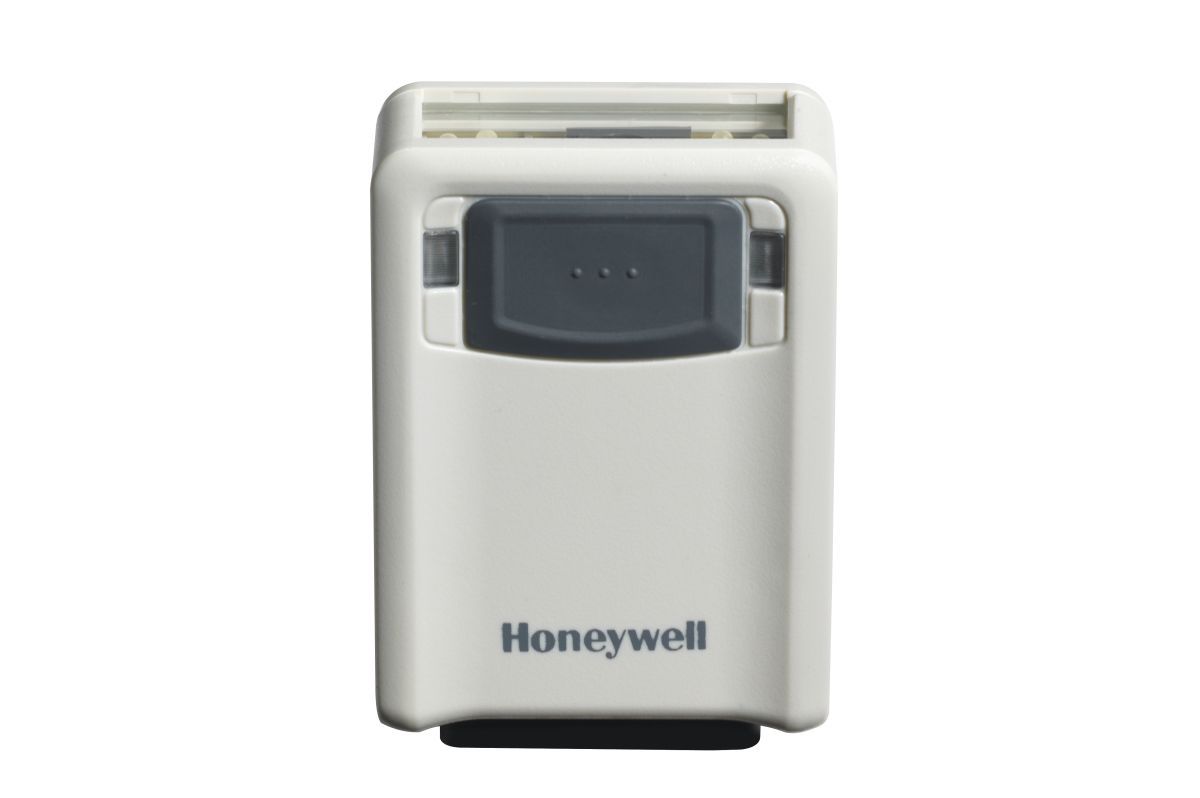

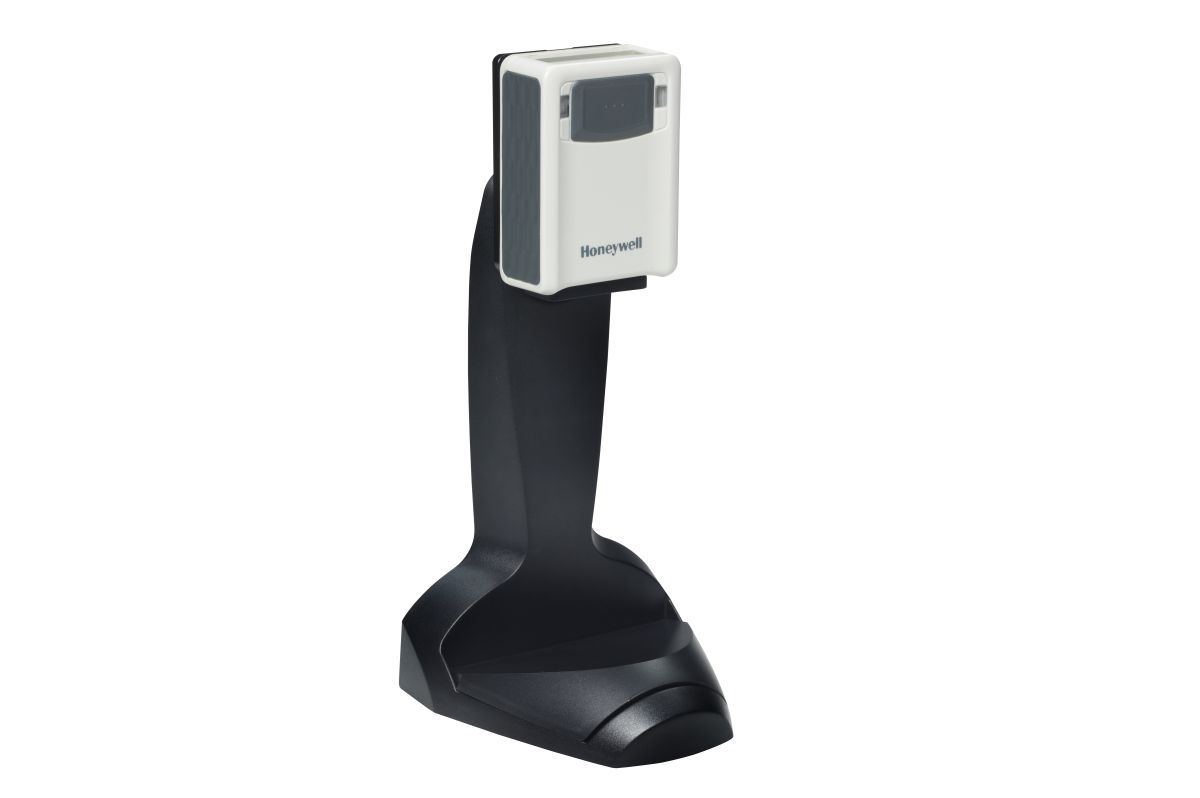

Honeywell 3320G Vuquest USB

The Vuquest™: 3320g compact area-imaging scanner offers aggressive scanning of all 1D, PDF and 2D barcodes in a lightweight, durable and portable form factor. The scanner’:s sleek and elegant design also blends seamlessly in retail environments, providing superior-performance scanning of all printed barcodes, and digital barcodes on any smart device.

• TotalFreedom enables the loading and linking of multiple applications directly onto the scanner, eliminating the need for host system modi cations while offering expanded decoding and data formatting functionality.
• A flexible licensing solution allows current scanning needs to be met while protecting the option to upgrade scanning capabilities in the future by simply purchasing a license for the appropriate feature.
• Laser-free aiming provides an accurate scan indication, creating a customer-friendly operating environment while removing the risk of eye injury.
• Easily scans barcodes directly from mobile device or computer screens, almost as if they were printed on paper.
• The intelligent multi-interface design supports all popular interfaces in one device, replacing the time-consuming process of scanning programming barcodes with automatic interface detection.

FEATURES
Form Factor

• Fixed

Features & Benefits

• Laser-free Aiming
• Flexible Licensing
• Easily Scans Barcodes on Screens
• Intelligent Interface Design

DIMENSIONS
Overall Dimensions

• 7.3 x 5.1 x 2.6 cm
• 2.9 x 2 x 1 in

SCANNING SPECIFICATIONS
Decode Capability

• 2D

Pitch

• 45

Skew

• 65

Maximum Brightness

• 100000

Scan Pattern

• Area Image

Motion Tolerance

• >270 cm/s (106 in/s) at focal point

Scanning Range

• Standard Range (100% UPC out to 24 ft (600 mm))

Print Contrast

• 20

HARDWARE
Engine Type

• 2D

Host System Interface

• KBW
• USB
• RS-232

ELECTRICAL
Input Voltage

• 5 V DC

Standby Current

• 90 mA

ENVIRONMENTAL
Storage Temperature Range

• - 20 - 70 °C
• - 4 - 158 °F

Operating Temperature

• - 20 - 50 °C
• - 4 - 122 °F

Operating Humidity

• 5 - 95 %

STANDARDS & APPROVALS
Protection Ratings

• IP53

SERVICE TERMS
Warranty Duration

• 2 yr
